Moulded Rubber Parts and Bonded Components

Rubber Mouldings and Bonded Components

Rubber mouldings and bonded components are specially developed rubber products for diverse industrial applications. As an experienced company, we develop and manufacture high-quality rubber components for industrial purposes that are precisely tailored to the respective technical requirements. Our rubber mouldings convince through their viscoelastic properties, making them particularly suitable for applications where vibration damping, absorption and isolation are required.

Precision Rubber Mouldings

The rubber mouldings manufactured by us are maintenance-free and are characterised by high resistance to mechanical, chemical and thermal loads. As a result, they offer reliable solutions for various machine parts, technical applications and industrial fields of use. Whether rubber buffers, sealing rings or individually developed components – we manufacture tailor-made technical rubber goods for industry and trade.

• Rubber mouldings are elastic, incompressible, maintenance-free
• Rubber mouldings damp, seal, insulate, protect and separate

Consulting & Planning

Competent consulting and sound planning are the foundation of high-quality products. Our project managers provide you with comprehensive and expert advice. Contact us as early as the initial idea stage to discuss solutions utilizing moulded rubber parts or multi-material compounds. Only well-thought-out and fully developed products guarantee optimum long-term functionality.

• Plan your projects with us from the start
• Our application engineers provide expert advice on all material and manufacturing matters.

Product Development

Our mouldings are not standard products; instead, they are usually developed according to individual specifications. We design the right item for your application with functional precision. Especially for complex tasks, our design engineers, material technologists, production managers and logistics specialists collaborate to develop the tailor-made, complete solution for you.

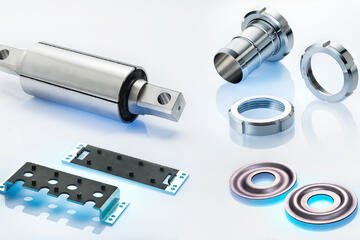

Individual Rubber Products according to Customer Specifications

Our rubber products and bonded components are developed and manufactured according to individual specifications. In doing so, we take into account the required function as well as the respective operating conditions, dimensions and requirements for material and resistance. In addition to classic rubber compression mouldings, we manufacture sophisticated precision rubber mouldings for applications where maximum dimensional accuracy and reliable function are essential.

A particular focus is on the manufacture of rubber-to-metal bonds. The combination of different materials creates high-performance composite components that can be used, for example, for vibration isolation, damping or power transmission.

• We develop and design mouldings for you based on your specific requirements
• The primary focus is on function and cost-effectiveness

Production Technology

Precision Manufacturing for small and large Batches

For the manufacturing of our rubber mouldings, we utilise modern production technologies such as compression moulding, transfer moulding and injection moulding. This enables us to realise both small and large production batches efficiently and cost-effectively. From the initial idea through design and product development to series production, we support our customers with comprehensive advice and technical expertise.

Our custom-manufactured rubber products combine precision processing, suitable material selection and reliable function. This results in cost-effective solutions for a wide variety of industrial requirements – from simple rubber buffers and sealing rings to complex precision rubber mouldings and rubber-to-metal bonds.

Rely on our experience in the development and manufacture of high-quality rubber mouldings, compression mouldings and technical rubber goods. Together, we transform your requirements into high-performance and durable components for industry and trade. For large-volume items, we offer highly cost-effective autoclave curing.

• Compression and transfer moulding
• Injection moulding for large-scale series production
• Large-volume items via autoclave curing

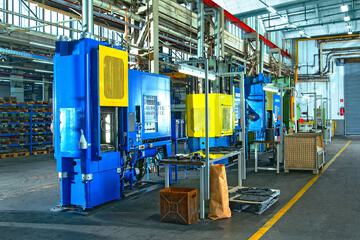

Pressing & Moulding

Single and multi-part vulcanisation moulds are used in steam and electrically heated presses with corresponding platen sizes. We also welcome the use of your existing tooling. We manufacture small production runs and simple parts using compression moulding, while medium series of dimensionally demanding components as well as bonded parts are produced using the more precise transfer moulding process.

• Steam and electrically heated multi-daylight presses
• Platen sizes from 300 x 300 mm up to 1,800 x 1,800 mm
• Compression and transfer moulding

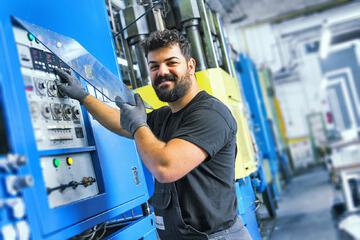

Injection Moulding

Our process-reliable machines are electrically heated and are ideally suited for large production runs, components with high dimensional accuracy, and large-volume parts. Vulcanisation takes place at temperatures exceeding 200°C. Precise compounds, permanently installed and directly heated tooling, predefined demoulding planes, controlled processes, and short cycle times ensure maximum economic efficiency.

• Vertical injection moulding machines
• Clamping dimensions from 530 x 630 mm up to 650 x 750 mm
• For small parts: 300 x 300 mm

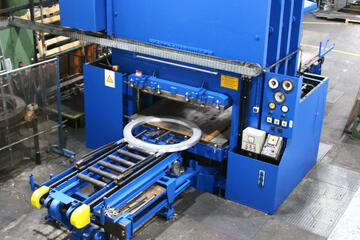

Custom Machinery

Moulded rubber parts for special requirements are our speciality. These include large-volume or flat, planar complex components as well as rubber sheets made from all types of special compounds. The items are manufactured using dedicated vulcanising presses, which are steam or electrically heated and designed to accommodate the corresponding tooling. Hydraulic demoulding devices ensure short cycle times.

• Multi-daylight presses with platen sizes from 1,000 x 1,000 mm up to 1,800 x 1,800 mm
• Injection moulding machines with large clamping areas and corresponding injection volumes

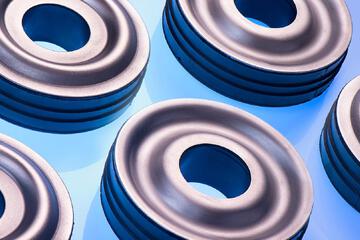

Rubber-to-Substrate Bonding

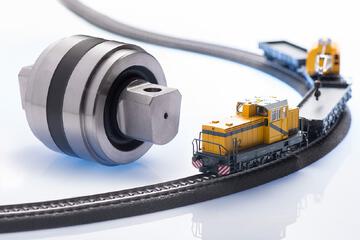

Components made by bonding different materials are used across all industry sectors. They combine the uniquely positive properties of the respective materials to create specific functionalities. For instance, rubber-to-metal elements feature the elasticity of rubber while simultaneously providing the structural strength of metal. We can realise a wide variety of material combinations.

• Material combination: rubber-to-rubber
• Material combination: rubber-to-metal
• Material combination: rubber-to-fabric
• Material combination: rubber-to-thermoplastics

Bonding Types

Where bond strength requirements are low, mechanical interlocking partial joints are sufficient. In contrast, incompatible materials and components with high specifications require the application of primers to the metal or fabric, alongside chemical bonding agents, to achieve high-strength adhesive bonds. For rubber and plastic combinations, direct bonding is the ideal method.

• Mechanical interlocking joints for components with low requirements
• High-strength adhesive bonding through the use of primers and bonding agents
• Direct bonding with compatible materials

Metals & Preparation

Iron, steel, aluminium, brass, bronze, and copper are used as structural reinforcements. For a durable bond, the proper pretreatment of the metal parts is of paramount importance. To remove the existing oxide layer and increase the surface area, we blast and degrease the metals before applying primers and chemical bonding agents. This process also provides the required corrosion protection.

• Various metals are used for bonded components
• Tailored chemical bonding agents are used depending on the specific rubber compound

Mould Concepts & Toolmaking

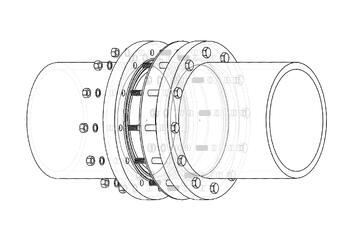

Exact drawings and 3D CAD solid models usually form the basis for a coordinated and coherent concept for highly capital-intensive metal vulcanisation moulds. The design, size and number of cavities of the moulds are largely determined by the component geometry, the compound used, the manufacturing process and the targeted lifespan of the component.

Custom Tool and Mould Manufacturing for Rubber Products

Whether tooling for toolmaking, custom moulds or complex vulcanisation moulds – we develop solutions for diverse requirements in the rubber processing industry. Our expertise in mould making for primary shaping enables the production of precision tools for demanding rubber products.

From the initial design to the finished mould, the focus is on cost-effective and reliable production. This results in high-quality moulds for rubber mouldings, allowing even complex geometries and individual customer requirements to be implemented reliably.

Rely on our experience in tool and mould making. With precisely manufactured vulcanisation moulds, we establish the foundation for the efficient, reproducible and high-quality production of rubber mouldings and bonded products.

• Mould toolmaking is a highly complex task
• Mould concepts developed in parallel with component design
• Coherent concepts for process-reliable and cost-effective manufacturing

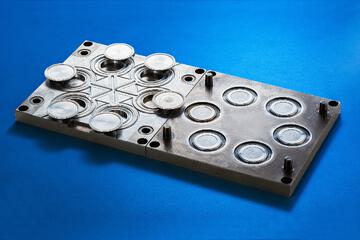

Vulcanisation Moulds for the precise Manufacturing of Rubber Mouldings

Vulcanisation moulds are an essential component in the manufacturing of high-quality rubber mouldings, components and profiles. In professional toolmaking, maximum precision and exact coordination with the respective component geometry, rubber compound and the manufacturing process used are crucial.

We develop and manufacture moulds for rubber mouldings according to individual requirements. Through precise engineering and well-conceived tool design, we establish the requirements for process-reliable, reproducible and cost-effective production. Our tooling for the rubber processing industry is tailored to the respective production conditions and quality requirements.

Precision Toolmaking for the Rubber Industry

Our scope of services covers toolmaking, mould making and jig construction for various applications. In addition to standardised solutions, we realise custom toolmaking designs that are precisely tailored to the requirements of the respective rubber product and manufacturing process.

Manufacturing is carried out using modern processes and with high dimensional accuracy. From design through tool production to the final tool assembly, we reliably support our customers. The primary focus is on a long tool lifespan, precise shaping and the cost-effective production of the rubber parts.

Compression and Injection Moulds for Vulcanising Presses

Our vulcanisation moulds are available in various designs. These include single-part and multi-part compression and injection moulds that are specially adapted to the respective manufacturing process. For transfer moulding, the tools can be equipped with guided cores or ejector rails, for example.

The vulcanising presses used for rubber place high demands on the design and function of the tooling. Therefore, we already consider all relevant parameters during the design stage to enable the reliable and efficient manufacturing of rubber mouldings.

• Utilisation of metal moulds
• Single-part and multi-part tooling
• Fixed-installation injection moulds

Finishing & Inspection

In addition to mechanical deburring, large-volume articles and components with complex geometries produced by press moulding undergo manual finishing. This process always includes a simultaneous visual inspection of the final product. This allows functionally relevant features to be reliably monitored, ensuring the faultless quality of our series production parts.

• Bonded components usually require manual finishing
• 100% manual final inspection
• Monitoring of functional features

Product Testing

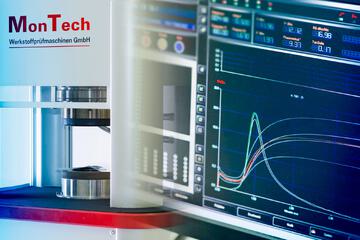

In our in-house laboratory, we conduct specific mechanical-dynamic tests to verify mechanical, physicochemical, and electrical properties, following either official standards or custom test sequences. For analyses and testing beyond our internal capabilities, we cooperate with the German Institute of Rubber Technology (DIK) and the Technical University of Hanover.

• Material testing on vulcanised test specimens
• Customised testing using standard-compliant test equipment

Logistics

We manufacture custom moulded rubber parts and bonded components on a made-to-order basis across multiple production stages, keeping all required raw materials readily available. Thanks to sophisticated internal and external logistics, we respond quickly and flexibly to individual customer requirements. A demand-oriented, electronically supported flow of information and materials ensures timely provisioning and delivery.

• Our manufacturing is entirely order-based
• Well-stocked raw material warehouse
• Electronically supported information flow
